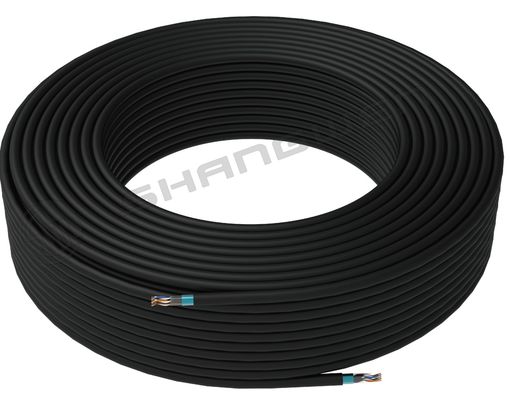

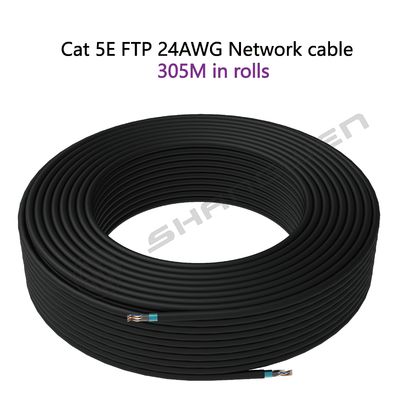

CAT5E FTP Internet Cable RJ45 Cat5e 24AWG FTP 4pair Copper CE UL Multiple Twist Soft CAT5e Outdoor COPPER Ethernet Cable Reel
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| タイプ | 猫5e | 導体の数 | 8 |
|---|---|---|---|
| ジャケット素材 | PVC | 色 | 黒は、他の色カスタマイズすることができる |
| シールド | FTP | 導体 | 紀元前のCCA |
| 長さ | 1m/2m/3m/5m/10m/カスタマイズ | 応用 | ネットワーキングかコンピュータ |
| ハイライト | CAT5E FTP Internet Cable,24AWG FTP Internet Cable,Outdoor CAT5E FTP Internet Cable |
||
製品の説明
Products Description

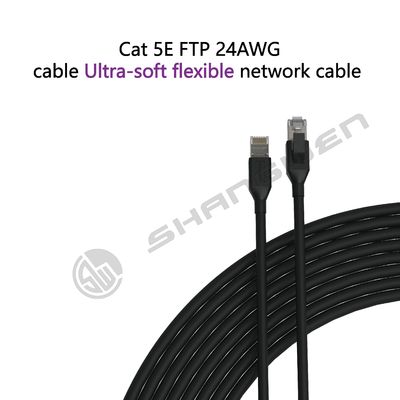

Cat5E FTP Patch Cord Ethernet Cable
SHANGWEN's network cable is made of high quality, 100% pure copper free of oxygen and is open to any inspection.
The problem of 40% return loss in the current system has been improved through the continuous research of the technical department.Basically solve the problem of signal interrupt when the network cable is in use. Faster transmission efficiency can avoid the delay phenomenon in the picture transmission, and ensures that there is no delay in playing games during live and working. High - end precision instruments are used for conducting tests, and the conducting impedance is controlled within the standard range.

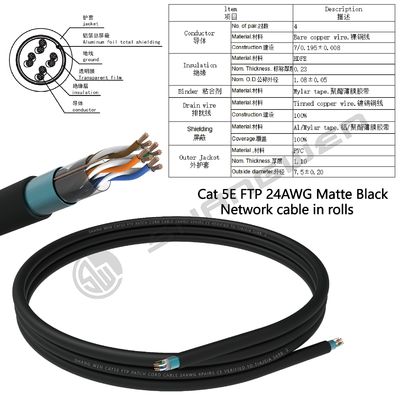

Cable type | Cat5E / FTP |
Length | Standard-1M / other lengths can be customized |
Conductor material | Multiple strands of copper wire 7 * 0.2mm BC pure oxygen-free copper *Other size of the copper core can be customized *CCA can be customized |
Cable material | HOPE inner + flame retardant PVC outer |
AWG | 1.Standard-24AWG 2.23AWG,26AWG,28AWG,30AWG etc size can be customized |
Cable weight | 31g / pcs (1M-bare wire） |
Shielding | shielded twisted pair |
Connector | 50U”8P8C RJ45 Plug |
Connector color | Transparent, black/other colors can be customized |
Connector Weight | 1.6g/pcs |
Advantage | a. Special craft shrapnel design, repeated bending without breaking, better support for repeated fluidity use b.Three-prong widening, thickening and lengthening the chip to ensure full contact between the chip and the core c. Connector pure copper chip, processed by nickel plating and gold plating process, anti-oxidation, no blackening d. Connector's chip 50μm gold-plated, supports 100,000 times of repeated plug-and-plug use e.Connector's chip and wire core are precisely riveted, and the transmission is more stable |
Characteristics
Insertion force | 30N max. |
Retention strength | 8.3kg between jack and plug |
Operating temperature | -20℃ to 80℃ |
Fluke | 100% component test |
Certification | CE/UL/FCC/RoHS |
Guarantee | 3 Years |
MOQ | 1.Standard configuration MOQ-100pcs 2. Needed to be customized MOQ-1000pcs |
Logo | SHANGWEN or No logo/Other logos can be customized |
Related Products
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging & Shipping
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
