☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67
すべての製品
-
MACKこの製品の外観はとても気に入っています. そして色調も私のニーズを満たしています. それは箱と非常に調和しています. 接続性能は非常に安定しています.そして,すべての側面の対応する証明書と仕様が完了しています.信頼して使用できます -
シルヴィオ・ゲーウィラー対応するニーズに応じて私に対応する製品を推奨します. 彼は問題について詳細で包括的な理解を持っています.製品が快適で 簡単に接続・解除できます. -
ジェイソン・ファークス電気コンネクタや信号コンネクタが 非常に安定した出力を達成できます私の基本的な要求は満たされます.シャングウェンの製品に 心配するな -
イヴァン・マルティッチ品質は非常に良い 完全には説明に一致します 期待を超えて 配達速度は非常に速い 包装は非常に慎重で厳格ですロジスティックサービスは完璧です.,配送速度は非常に速い,そしてショッピング品質は非常に良い,私はより多くの友達が信頼することを望みます. -
アーサー・ギリー当初は,私は,予期せぬ態度で注文しましたが,品質とフィットネスが私の期待を上回ると予想しませんでした. 現在,使用問題はありませんでした.売り手は私とコミュニケーションをとり,あらゆる質問に答えることに非常に積極的でした..

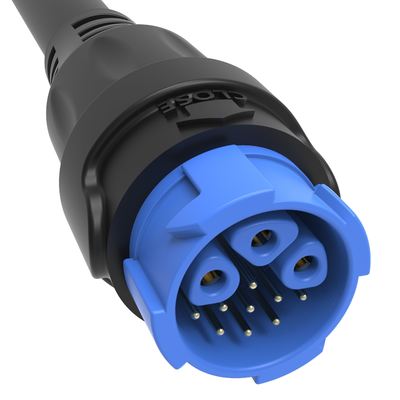

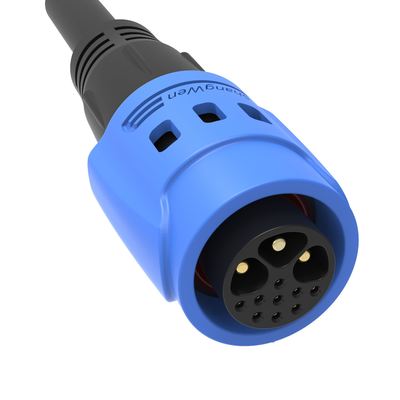

M19 Series Push-pull Self-locking Connection Industrial 3+9 Pin Female Male Plug Power Signal Connector
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| タイプ | SW19自動閉鎖シリーズ | 応用 | 産業 |
|---|---|---|---|
| 性別 | 女性 | 産業用電子機器 | アクセサリー |
| ハイライト | Self-locking Connection Industrial Connector,3+9 Pin Male Male Connector,M19 Industrial Connector |
||
製品の説明
Products Description
SW19 Self-locking series-3+9 Pin connector

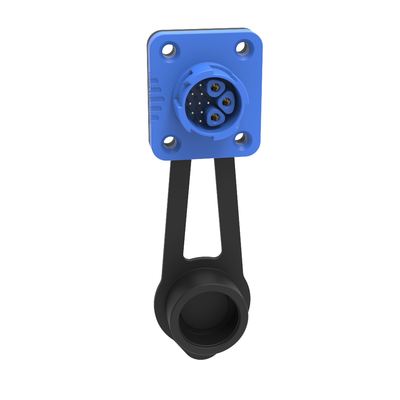

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
Model : SW19-12KS-TL
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67
1.Electrical parameters
Contacts NO. | 12 pin |
Rated current | 20A |
Rated voltage | 300V AC |
Withstand voltage | 1500V |
Insulation resistance | ≥100mΩ |
Contact resistance | ≤10mΩ |
2.Mechanical parameters
Service life | ＞1000 times |
Power line | Φ4.5mm-Φ11mm |
Cable size | 0.3mm²-2.5mm²(22AWG-12AWG) |
Type of terminals | Screw terminal and soldering terminal available |
3.Material and environmental parameters
Shell | High performance engineering plastics |
Contacts | Copper alloy |
Contact diameter | Φ2.4mm |
Protection degree | IP67 |
Flame-retardant grade | UL94-V0 |
Temperature range | -40℃~105℃ |
4.Size reference (unit /mm)
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
