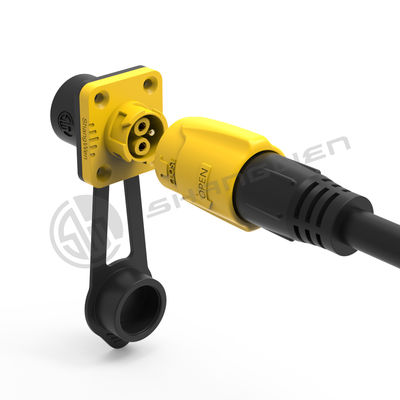

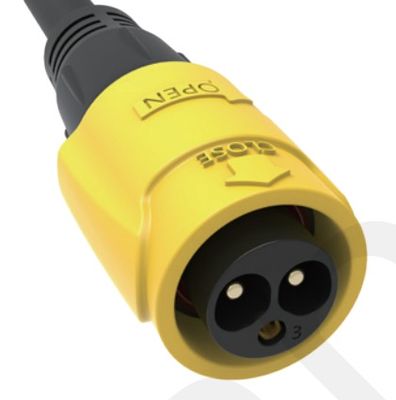

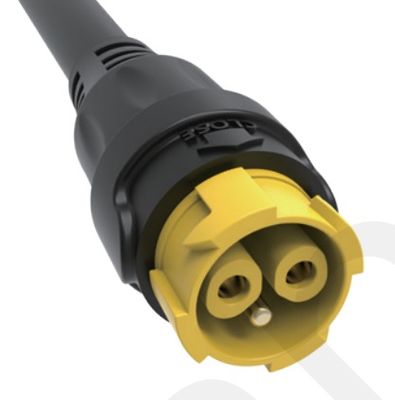

M19 Series Push-pull Self-locking Yellow Connection Industrial 3 Pin Female Male Plug Power Connector
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| タイプ | SW19自動閉鎖シリーズ | 応用 | 産業 |
|---|---|---|---|
| 性別 | 男 | 産業用電子機器 | アクセサリー |
| ハイライト | 3 Pin Male Plug Power Connector,Push-Pull Locking Power Connector,Male Plug Power Connector |
||
製品の説明
Products Description
SW19 Self-locking series-3 Pin connector

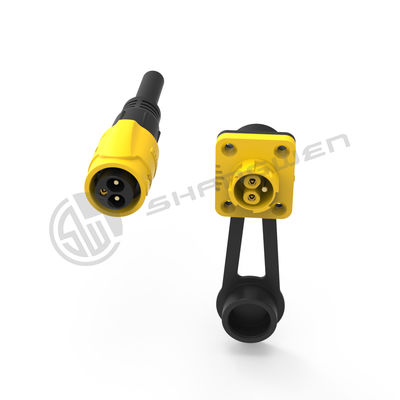

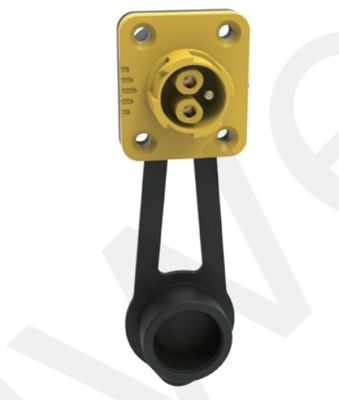

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
Model : SW19-3XS-TYC
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67
1.Electrical parameters
Contacts NO. | 3 pin |
Rated current | 20A |
Rated voltage | 300V AC |
Withstand voltage | 1500V |
Insulation resistance | ≥100mΩ |
Contact resistance | ≤10mΩ |
2.Mechanical parameters
Service life | ＞1000 times |
Power line | Φ4.5mm-Φ11mm |
Cable size | 0.3mm²-2.5mm²(22AWG-12AWG) |
Type of terminals | Screw terminal and soldering terminal available |
3.Material and environmental parameters
Shell | High performance engineering plastics |
Contacts | Copper alloy |
Contact diameter | Φ2.4mm |
Protection degree | IP67 |
Flame-retardant grade | UL94-V0 |
Temperature range | -40℃~105℃ |
4.Size reference (unit /mm)
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
