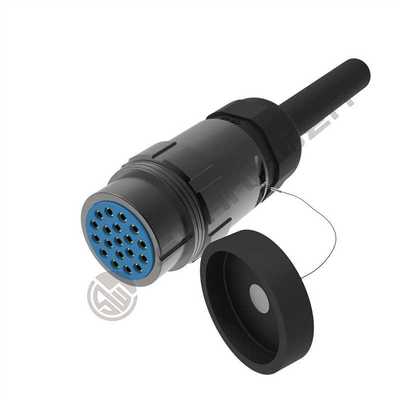

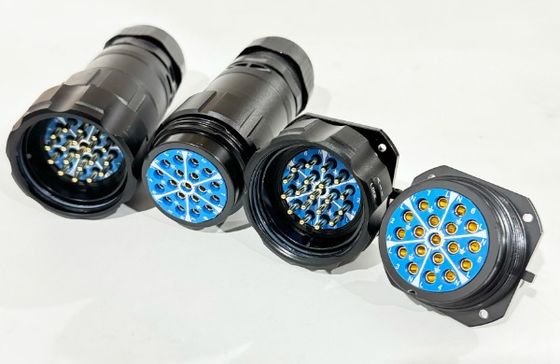

19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level

  • 19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level
  • 19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level
  • 19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level
  • 19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level
  • 19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level
起源の場所 中国広州
モデル番号 SW3MWT06、SW3FWT06
最小注文数量 2個
価格 $19-38 / piece

試供品およびクーポンのための私に連絡しなさい。

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
応用 産業、コマーシャル 接触材料 銅、真鍮に金メッキ
性別 男性/女性 住宅資料 PVC
IPレベル IP67 タイプ プラグ,電気プラグ
産業用電子機器 アクセサリー コア数 接地線付きの19コア
ハイライト

PVC Housing 19-Pin Socapex Cable

,

Male Female Socapex Cable

,

IP67 Socapex Cable
メッセージ
製品の説明
Products Description
19-Pin Socapex Power Extension Cable Copper Electrical Plug Multipin Female Connectors
This 19-pin connector is designed for stable coupling and fast wiring. Indestructible, super secure and easy to handle.Compatible with Socapex SL 419 series.Certified by the German TUV. The unit is fully IP67 waterproof when mated. Electrical safety and compliance are ensured by the internal insulation of the housing, obtained by means of a safety insulating sleeve to prevent electric shock, as well as a "first on, then off" ground contact.
The locking ring and back case are designed for easy handling. Our company's SLY 19 cores are perfectly compatible with the standard Socapex SL 419 series and are made of a machined aluminum alloy with a thick-walled structure, which is very strong and very resistant to wear with black lacquer or anodized finish. The system ensures that the interior is actively locked down, putting an end to a long-standing industry problem.
Socapex 19 Pin Connector is a 19-pin electrical connector with a high strength-weight ratio that has become the standard for stage lighting multi-cable connections.It’s a proven solution for stage entertainment. Designed to be rugged and long lasting with superior conductivity.
• Amphenol Socapex SL419 Compatible
• 19 Pin connectors are all rated 25A
• Multi-point Gold Plated Contacts
• M40 metric cable glands for multicore socapex cable pinout (bush sizes 10-32mm)
• Socapex Breakout Wire sizes from 12 to 14 AWG (1.5-2.5mm)
• IP67 ingress protection when mated
• Temperature Rating -55oC to +125oC
• Voltage Rating 600 VAC, 700 VDC max
• FMLB Earth contacts
• ROHS Compliant
Features of Socapex 19 Pin Connector:
1. The tail of cable inlet plug is equipped with cable waterproof joint with waterproof grade of IP67
2. Aluminum die casting integrated shell, waterproof, solid and impact proof
3. The guide pin is plated with 24K gold, which has good conductivity
4. The guide pin inner core is made of high temperature resistant, heat resistant, environmental friendly and good insulation electric glue
5.CE certification
6. Welding only
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 0
SW3FWT06,SW3MWT06
☑ Certified by the German TUV. The unit is fully IP67 waterproof
☑All SLY connectors are equipped with an anti-rotation design to prevent rotation of the insulating insert within their housing ☑The anti-rotation system features 4 large keys + 4 small keys that physically move 45 degrees from each other
☑perfectly compatible with the standard Socapex SL 419 series and are made of a machined aluminum alloy with a thick-walled
structure, which is very strong and very resistant to wear with black lacquer or anodized finish
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 2
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 4
1.Product parameters
Product
SW3FWT06,SW3MWT06
Connection Type
19-Pin connector
Gender
female/male
2.Size reference (unit /mm)
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 6
Application area
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 8
Company Information
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 10
Patent & Certification
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 12
Exhibition activities
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 14
Packaging reference
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 16
Payment and logistics
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 18
FAQ
19-Pin Socapex Power Extension Cable with PVC Housing Copper Electrical Plug and Multipin Male Female Connectors IP67 Level 20
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
