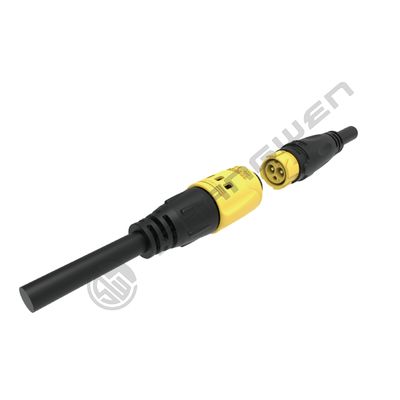

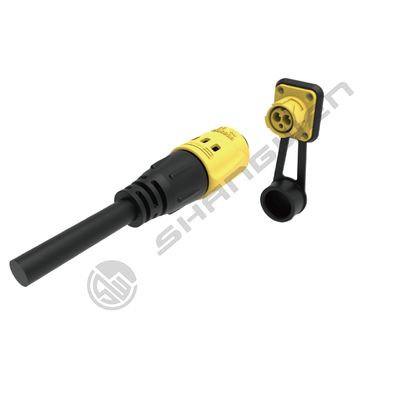

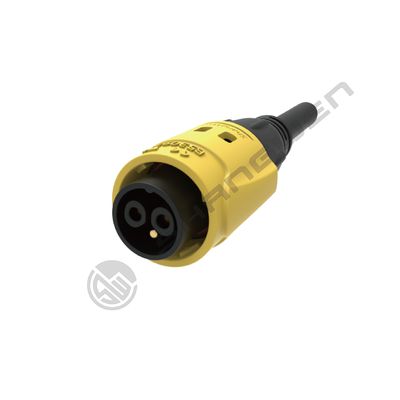

IP65 Quick Plug Output Push-pull Self-locking Yellow Industrial Female Male Plug Power M19 Push Lock Waterproof 3 Pin Connector
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 応用 | 産業用 | 接触材料 | 銅 |
|---|---|---|---|
| 定格電流 | 20 A | 定格電圧 | 250V |
| 性別 | 男 | 住宅資料 | PA66 |
| タイプ | SW19自動閉鎖シリーズ | 産業用電子機器 | 付属品 |
| シェル、絶縁部品 | 高機能エンジニアリングプラスチック | 銅針の材質 | 銅合金 |
| ハイライト | Waterproof Quick Lock Connector,M19 Quick Plug Output Connector,Push-pull Self-locking Power Connector |
||
製品の説明
Products Description
SW19 Self-locking series-3 Pin connector

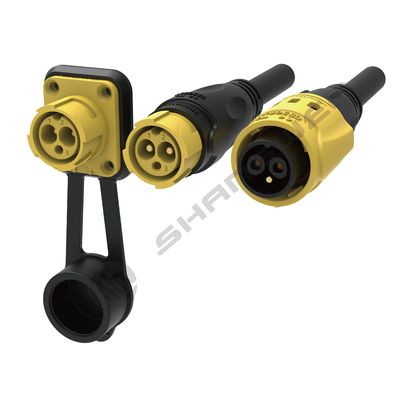

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
Model : （output）
SWM19-3TBS-E3
SWM19-3TYS-E3
SWM19-3TLS-E3
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP65
1.Electrical parameters
Contacts NO. | 3 pin |
Rated current | 20A |
Rated voltage | 250V AC |
Withstand voltage | 1500V |
Insulation resistance | ≥100mΩ |
Contact resistance | ≤10mΩ |
2.Mechanical parameters
Service life | ＞1000 times |
Power line | Φ4.5mm-Φ11mm |
Cable size | 0.3mm²-2.5mm²(22AWG-12AWG) |
Type of terminals | Screw terminal and soldering terminal available |
3.Material and environmental parameters
Shell | High performance engineering plastics |
Contacts | Copper alloy |
Contact diameter | Φ2.4mm |
Protection degree | IP65 |
Flame-retardant grade | UL94-V0 |
Temperature range | -40℃~105℃ |
4.Size reference (unit /mm)
Our power connector is a high-performance product designed to meet the needs of modern industrial and outdoor equipment, featuring
the following outstanding characteristics:
1. IP65 waterproof rating: Exceptional waterproof and dustproof performance ensures stable operation in outdoor or humid environments.
2. Supports 20A current transmission: High current capacity meets the power requirements of heavy-duty equipment.
3. Self-locking structure: Equipped with an intelligent self-locking design to ensure a secure connection and prevent accidental disconnection, enhancing safety.
4. Easy assembly: Optimized structure design for easy installation and removal, significantly improving work efficiency.
5. Multiple certifications: Certified by multiple countries, meeting international standards to ensure quality and safety.
6. Durable and robust: Built with high-quality materials, offering excellent corrosion resistance and impact strength, suitable for various challenging environments.
This power connector is widely used in industrial automation, heavy-duty equipment, and outdoor applications, providing a
reliable, stable, and efficient power connection solution
the following outstanding characteristics:
1. IP65 waterproof rating: Exceptional waterproof and dustproof performance ensures stable operation in outdoor or humid environments.
2. Supports 20A current transmission: High current capacity meets the power requirements of heavy-duty equipment.
3. Self-locking structure: Equipped with an intelligent self-locking design to ensure a secure connection and prevent accidental disconnection, enhancing safety.
4. Easy assembly: Optimized structure design for easy installation and removal, significantly improving work efficiency.
5. Multiple certifications: Certified by multiple countries, meeting international standards to ensure quality and safety.
6. Durable and robust: Built with high-quality materials, offering excellent corrosion resistance and impact strength, suitable for various challenging environments.
This power connector is widely used in industrial automation, heavy-duty equipment, and outdoor applications, providing a
reliable, stable, and efficient power connection solution
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
