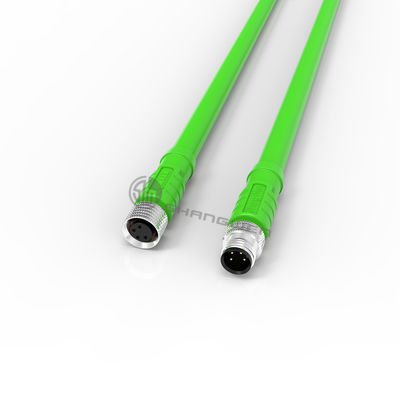

Factory Sales Industrial Circular Cable Green Electrical Wire M8 Ip67 Waterproof 4 Pin Connector
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 応用 | 産業 | 性別 | 男性と女性のプラグ |
|---|---|---|---|
| タイプ | SW-M8コネクタシリーズ | 産業用電子機器 | アクセサリー |
| ハイライト | Waterproof M8 Cable Connector,Ip67 M8 Cable Connector,Industrial Circular Cable Connector |
||
製品の説明
Products Description
SW-M8 connector series-male and female plug
M8 connector series is an industrial connector. With waterproof, oil resistance, cold resistance, stable performance, high
efficiency and fast connection, etc. Widely used in photoelectric switches, sensors and various industrial wiring systems. Since its inception has been in outdoor light box, construction machinery, steel production equipment, power equipment, mining machinery, ship machinery, automotive equipment, production automatic equipment, temperature sensors, hydraulic machine tools, sensors, solenoid valves, instrumentation, pressure transmitters and other fields have excellent performance.
efficiency and fast connection, etc. Widely used in photoelectric switches, sensors and various industrial wiring systems. Since its inception has been in outdoor light box, construction machinery, steel production equipment, power equipment, mining machinery, ship machinery, automotive equipment, production automatic equipment, temperature sensors, hydraulic machine tools, sensors, solenoid valves, instrumentation, pressure transmitters and other fields have excellent performance.
Model : SW8-4KLT
☑Connect reliably
☑Small size of product
☑Multiple cores 2+3,2,3,4,5pin support multiple application scenarios
☑Waterproof rating IP67 ☑With shielding function ☑All metal material
1.Electrical parameters
Contacts NO. | 4pin |
Contact diameter(mm) | 1.0 |
Rated current | 5A |
Rated voltage | 60V |
Withstand voltage (AC.V 60S) | 500V |
Insulation resistance | ＞100MΩ |
Wire(mm) | 0~5.5 |
2.Material and environmental parameters
Shell | copper |
Rubber core | PA66 30%/ PA66 plus fiber 30% |
Contacts | Gold-plated copper |
Shielding shell | Copper nickel plating |
Screw | aluminum |
Surface treatment | Ni:80-120u"(Min) U./Overall Ni plating: 80-120U "(Min) Male end and female end are plated with ordinary U |
Protection degree | IP67 |
Working temperature | -25～+85C° |
3.Size reference (unit /mm)
4.Finished drawing reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
