☑Accommodates SW8X3 or any standard RJ45 plug
☑SW8X3 coupler (adapter) for cable to cable mating – use with SW8X3 carriers or any standard RJ45 plug
☑Approved latch lock system
すべての製品
-
MACKこの製品の外観はとても気に入っています. そして色調も私のニーズを満たしています. それは箱と非常に調和しています. 接続性能は非常に安定しています.そして,すべての側面の対応する証明書と仕様が完了しています.信頼して使用できます -
シルヴィオ・ゲーウィラー対応するニーズに応じて私に対応する製品を推奨します. 彼は問題について詳細で包括的な理解を持っています.製品が快適で 簡単に接続・解除できます. -
ジェイソン・ファークス電気コンネクタや信号コンネクタが 非常に安定した出力を達成できます私の基本的な要求は満たされます.シャングウェンの製品に 心配するな -
イヴァン・マルティッチ品質は非常に良い 完全には説明に一致します 期待を超えて 配達速度は非常に速い 包装は非常に慎重で厳格ですロジスティックサービスは完璧です.,配送速度は非常に速い,そしてショッピング品質は非常に良い,私はより多くの友達が信頼することを望みます. -
アーサー・ギリー当初は,私は,予期せぬ態度で注文しましたが,品質とフィットネスが私の期待を上回ると予想しませんでした. 現在,使用問題はありませんでした.売り手は私とコミュニケーションをとり,あらゆる質問に答えることに非常に積極的でした..
Outdoor Button Female Male Plug Signal Rj45 Adaptor Connector for Cable Extensions
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 性別 | 女性 | タイプ | アダプタ |
|---|---|---|---|
| 産業用電子機器 | アクセサリー | ||
| ハイライト | Signal RJ45 Adaptor Connector,Outdoor Button RJ45 Adaptor Connector,Outdoor RJ45 Plug Signal Adaptor Connector |
||
製品の説明
Products Description

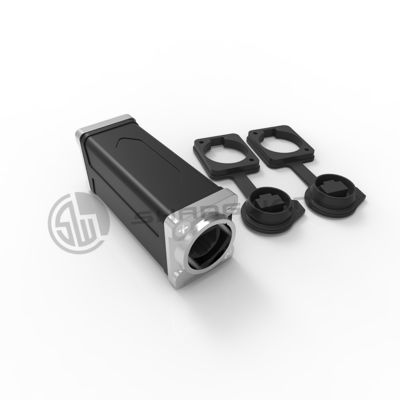

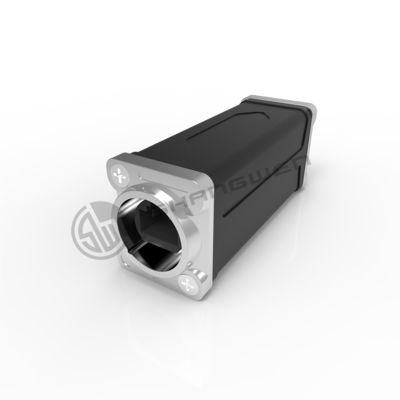

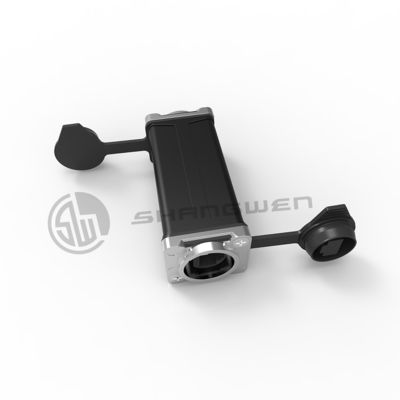

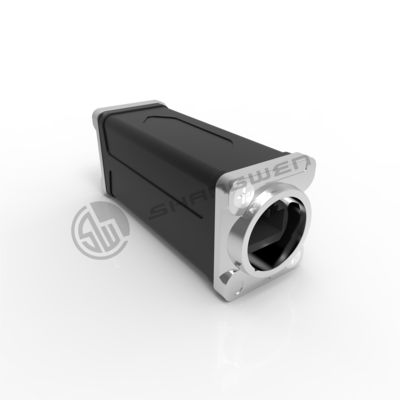

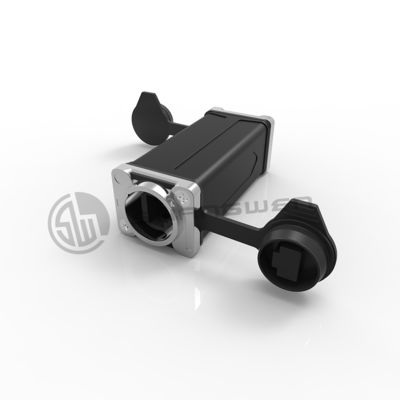

Outdoor Button Female Male Plug Signal Rj45 Adaptor Connector For Cable Extensions
Outdoor button signal connector
☑SW8X3 coupler (adapter) for cable to cable mating – use with SW8X3 carriers or any standard RJ45 plug
☑Approved latch lock system
1.Product parameters
Connection Type | Coupler (adapter) |
Gender | Female |
2.Electrical parameters
Contact resistance | < 10 mΩ |
Dielectric strength | 1 kVdc |
Frequency Range | 1 - 100 MHz |
Insulation resistance | > 0.5 GΩ |
Rated current per contact | 1,5 A |
Rated voltage | < 50 V |
Standards compliant | TIA/EIA 586B, IEC11801 |
3.Mechanical parameters
Insertion force | ≤ 20 N |
Pull out force | ≤ 20 N |
Service life | > 1000 mating cycles |
Locking device | Latch lock |
4.Material and environmental parameters
Contacts | Bronze (CuSn8) |
Contact plating | 0.2 µm Au over Ni plating |
Inner core | PBTP 15 % GR |
Shell | AlMgSi 0.5, black plated |
Clamping sleeve | CuZn35Pb2, tinned |
Flammability | UL 94 HB |
Temperature range | -30 °C to +80 °C |
5.Assembly reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
