☑Lockable 3 pole single phase equipment (AC) connector
☑High current capacity, rated at 20 A / 250 V ac
☑Fast and easy locking system ☑Extremely robust and reliable ☑Excellent cable retention ☑New latch design for easier handling and secure locking
すべての製品
-
MACKこの製品の外観はとても気に入っています. そして色調も私のニーズを満たしています. それは箱と非常に調和しています. 接続性能は非常に安定しています.そして,すべての側面の対応する証明書と仕様が完了しています.信頼して使用できます -
シルヴィオ・ゲーウィラー対応するニーズに応じて私に対応する製品を推奨します. 彼は問題について詳細で包括的な理解を持っています.製品が快適で 簡単に接続・解除できます. -
ジェイソン・ファークス電気コンネクタや信号コンネクタが 非常に安定した出力を達成できます私の基本的な要求は満たされます.シャングウェンの製品に 心配するな -
イヴァン・マルティッチ品質は非常に良い 完全には説明に一致します 期待を超えて 配達速度は非常に速い 包装は非常に慎重で厳格ですロジスティックサービスは完璧です.,配送速度は非常に速い,そしてショッピング品質は非常に良い,私はより多くの友達が信頼することを望みます. -
アーサー・ギリー当初は,私は,予期せぬ態度で注文しましたが,品質とフィットネスが私の期待を上回ると予想しませんでした. 現在,使用問題はありませんでした.売り手は私とコミュニケーションをとり,あらゆる質問に答えることに非常に積極的でした..

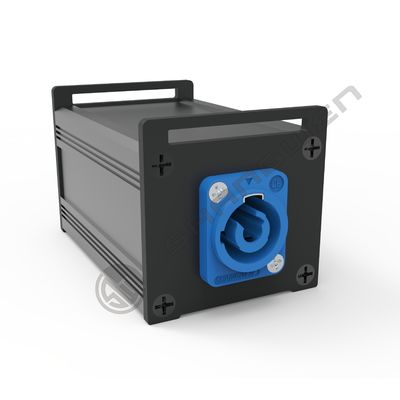

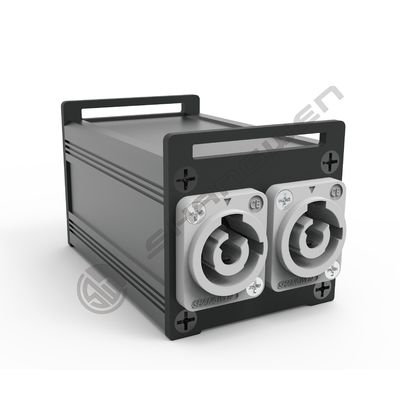

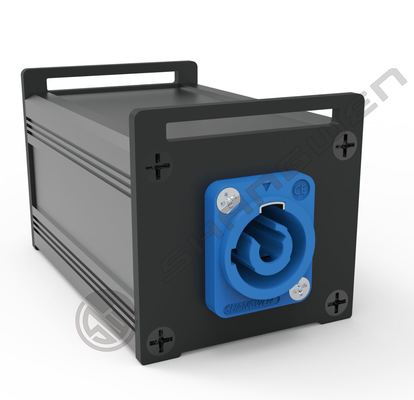

Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
商品の詳細
| 応用 | LEDライト、ステージ付き | 接触材料 | 銅 |
|---|---|---|---|
| 定格電流 | 20 A | 定格電圧 | 250V |
| 性別 | 男性/女性 | 住宅資料 | プラスチック |
| IPレベル | IP40 | タイプ | アダプタ |
| 産業用電子機器 | アクセサリー | 光源 | 導かれた |
| 材料 | アルミニウム | ||
| ハイライト | Powercon Connectors for Power Coupler,Powercon Connectors for LED Stage Lights,Powercon Connectors for Audio Equipment |
||
製品の説明
Products Description
Powercon 1 Input Male Female Connectors for LED Stage Lights Audio Equipment Power Couple Socket
SW3FWT23
☑High current capacity, rated at 20 A / 250 V ac
☑Fast and easy locking system ☑Extremely robust and reliable ☑Excellent cable retention ☑New latch design for easier handling and secure locking
1.Product parameters
Product | SWSFWT23 |
Connection Type | Adapter |
2.Electrical parameters
Contact resistance | ≤ 3 mΩ |
Dielectric strength | 4 kVdc |
Insulation resistance | > 0.1 GΩ (IEC 68-2-30) |
Rated current per contact | 20 A rms |
Rated voltage | 250 V ac |
3.Mechanical parameters
Service life | ＞1000 mating cycles |
Locking device | Quick lock |
4.Size reference (unit /mm)
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
