Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations

  • Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations
  • Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations
  • Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations
  • Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations
  • Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations
  • Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations
起源の場所 中国広州
ブランド名 SHANGWEN
モデル番号 SW8XLB-D-N
最小注文数量 10個
価格 $2.50-3.90 / piece

試供品およびクーポンのための私に連絡しなさい。

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
タイプ RJ45ソケット 応用 イーサネット
性別 女性 産業用電子機器 アクセサリー
ハイライト

Single Row Ethernet RJ45 Connector

,

Outdoor Ethernet RJ45 Connector

,

IP68 Waterproof RJ45 Connector
メッセージ
製品の説明
Products Description
Signal connector series-RJ45 connector（Metal button upgrade model）
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 0

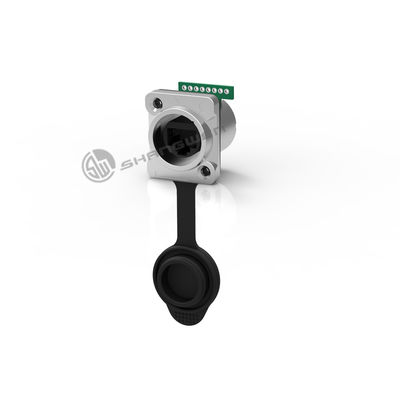

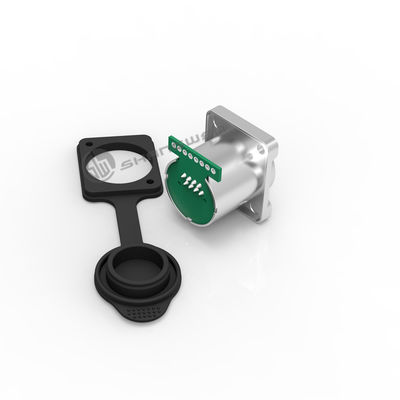

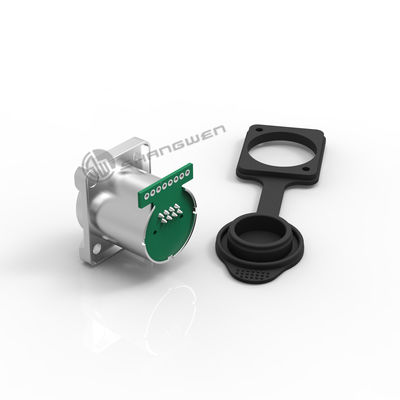

Model：SW8XLB-D（outdoor use）
*The rear end is single row type, IP65*
☑Can be equipped with SW8MC-03 or any standard RJ45 connector, one-hand operation, one key plug and unplug
☑D style with uniform metal flange, standard D mounting size
☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
☑D style, can be mounted from front or rear panel
☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached,
which can fully meet the durable and stable signal transmission under harsh outdoor conditions
☑All-metal housing with waterproof rear end
☑The back-end can be flexibly modified according to actual requirements
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 2
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 4
1. Electrical parameters
Contact resistance
＜10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
＞1000
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D
3. Material and environmental parameters
Shell
Zinc diecast (ZnAl4Cu1)
Contacts
Bronze
Socket
PBT
Contact surface
Au
Shell surface
Pearl Cr
Temperature range
-30℃to +80℃
4.Size reference (unit /mm)
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 6
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 8
5.Internal structure reference
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 10

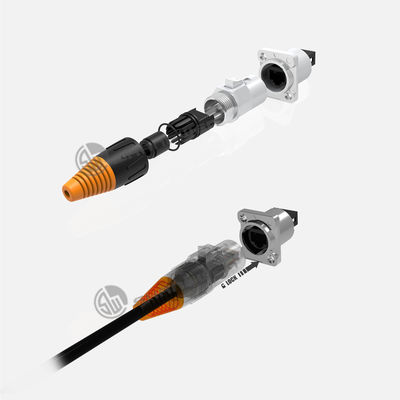

6. Installation instructions with SW8MC-03 plugs
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 12
Application area
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 14
Company Information
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 16
Patent & Certification
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 18
Exhibition activities
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 20
Packaging reference
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 22
Payment and logistics
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 24
FAQ
Single Row Panel Mount Outdoor Ethernet RJ45 Connector 1kv DC IP68 Waterproof Waterproof Socket for Outdoor Installations 26
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
