IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM

  • IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM
  • IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM
  • IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM
  • IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM
Place of Origin Guangdong, China
ブランド名 SHANGWEN
Model Number SWM8S-2ZM(METAL)
Minimum Order Quantity 10 pieces
価格 $1.14/pieces

試供品およびクーポンのための私に連絡しなさい。

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
Rated Current 50A, 40a IP level IP40
Type Loudspeaker Connector Gender MALE/FEMALE
Industrial electronics accessories
ハイライト

Latch Lock Cable Loudspeaker Connector

,

ODM Loudspeaker Connector

,

Screw-type Terminals Loudspeaker Connector
メッセージ
製品の説明
Products Description

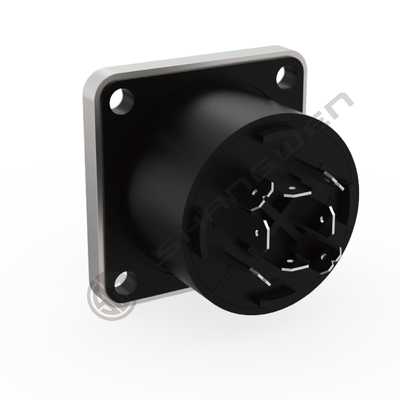

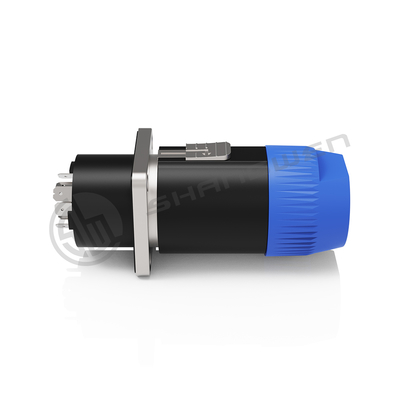

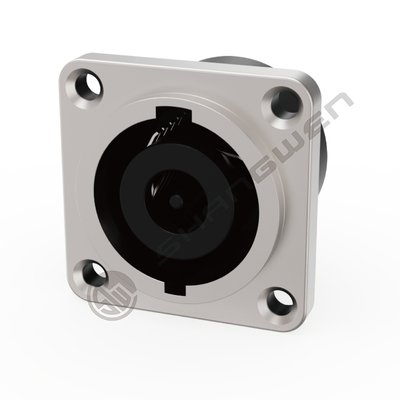

8-pole male chassis speakon connector, Nickel housing, metal shell,solder or ¼" flat tabs The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 0
Model：SWM8S-2ZM
☑Extremely robust metal housing designed for harsh and demanding environment
☑Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
☑Ideal product for touring applications and harsh environments
☑Uses precise “Quick Lock” system Mates with all currently available speakON products
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 1
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 2
1.Product parameters
Connection Type
SpeakON
Gender
Male
2.Electrical parameters
Contact resistance
< 2 mΩ (after lifetime)
Dielectric strength
3 kVdc (peak)
Insulation resistance
> 10GΩ
Rated current per contact
40 A rms continuous
Rated current per contact
50 A audiosignal, duty cycle 50 %
Rated voltage
250 V ac
Attention
SpeakON is NOT to be used as an AC mains or power supply connector!
3.Mechanical parameters
Service life
＞5000 mating cycles
Locking device
Quick Lock
Chassis shape
Square G-size flange
Layout
Four thru holes
4.Material parameters
Contact plating
4 µm Ag
Insert
Polyamide (PA 6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1) Ni
Contacts
Spring Copper (CuSn0.2)
5.Environmental parameters
Flammability
UL 94 HB
Protection class
IP 50 (mated condition)
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C

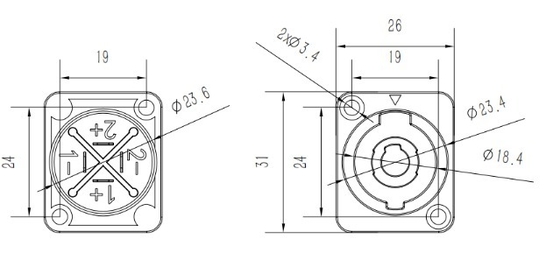

5.Size reference (unit /mm)
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 3
6.Assembly reference
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 4
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 5
Application area
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 6
Company Information
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 7
Patent & Certification
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 8
Exhibition activities
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 9
Packaging reference
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 10
Payment and logistics
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 11
FAQ
IP40 Metal Custom Screw-type Terminals Latch Lock Cable Round Female Plug 40A 50A 8 Pin Loudspeaker Connector OEM ODM 12
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
