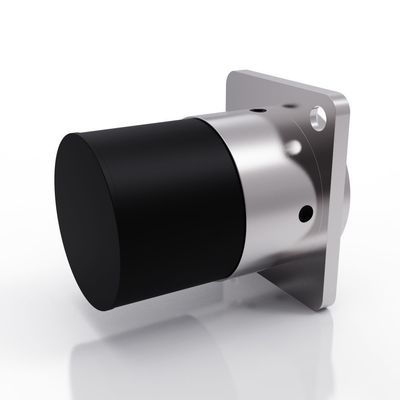

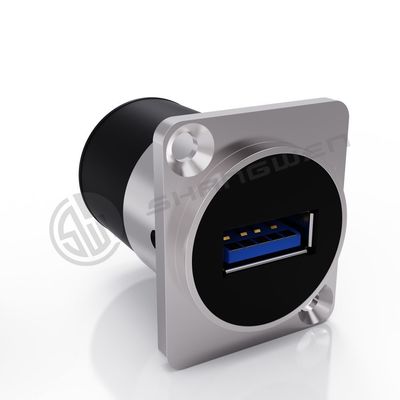

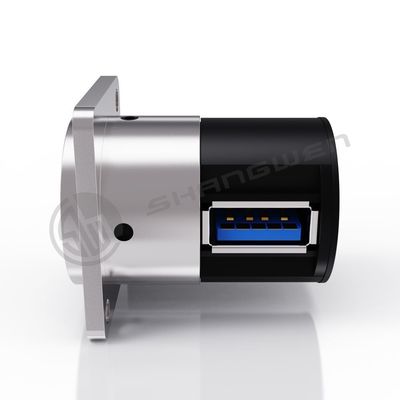

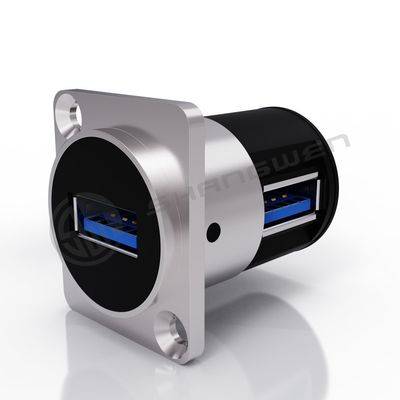

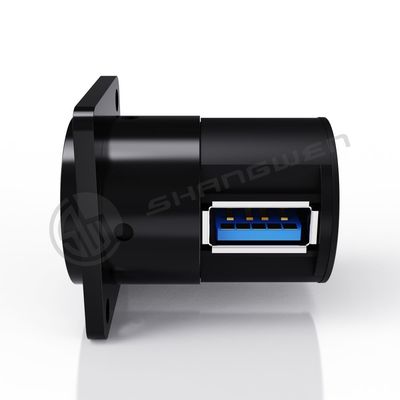

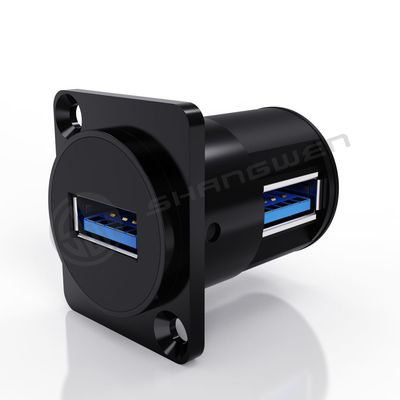

USB 3.0 Black Dustproof 9-Pin Audio Video Connection Male Female Connector Panel Mounting D-Type Metal Female Socket
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Type | usb | Application | data |
|---|---|---|---|
| Gender | Other | Industrial electronics | accessories |
| ハイライト | D-Type Metal Female Socket,Panel Mounting USB 3.0 Connector,9-Pin USB 3.0 Connector |
||
製品の説明
Products Description
Indoor/outdoor use data connector
Model : SWDU3-SBS
1.Electrical parameters
No. of poles | 4 |
Current rating | 1A |
Voltage rating | 30Vac (RMS) |
Contact resistance | 30m Ω max. |
Performance | USB version 2.0 |
2.Materials - Re-wireable and Panel Connectors
Shell material | Steel |
Shell plating | Nickel |
Contact material | Copper Alloy |
Contact plating | 30 micro inch Gold |
Connector body & locking ring | Glass Loaded Polyester |
Panel connector | Nylon 6 |
Flammability rating | UL94V-0 |
‘O’rings | Silicone |
Panel Gasket - round | Silicone |
Panel Gasket - square | Neoprene |
Mating cycles | 1,000 |
RoHS | Compliant |
3.Size reference (unit /mm)
