☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated，the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm
すべての製品
-
MACKこの製品の外観はとても気に入っています. そして色調も私のニーズを満たしています. それは箱と非常に調和しています. 接続性能は非常に安定しています.そして,すべての側面の対応する証明書と仕様が完了しています.信頼して使用できます -
シルヴィオ・ゲーウィラー対応するニーズに応じて私に対応する製品を推奨します. 彼は問題について詳細で包括的な理解を持っています.製品が快適で 簡単に接続・解除できます. -
ジェイソン・ファークス電気コンネクタや信号コンネクタが 非常に安定した出力を達成できます私の基本的な要求は満たされます.シャングウェンの製品に 心配するな -
イヴァン・マルティッチ品質は非常に良い 完全には説明に一致します 期待を超えて 配達速度は非常に速い 包装は非常に慎重で厳格ですロジスティックサービスは完璧です.,配送速度は非常に速い,そしてショッピング品質は非常に良い,私はより多くの友達が信頼することを望みます. -
アーサー・ギリー当初は,私は,予期せぬ態度で注文しましたが,品質とフィットネスが私の期待を上回ると予想しませんでした. 現在,使用問題はありませんでした.売り手は私とコミュニケーションをとり,あらゆる質問に答えることに非常に積極的でした..
5-Pin XLR Female Audio Connector Black Indoor Shell with Gold Contacts for Microphone Audio Cable Plug Mic Connector Socket
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Type | XLR connector | Application | Audio & Video |
|---|---|---|---|
| Gender | Female | Industrial electronics | accessories |
| ハイライト | 5 Pin XLR Female Audio Connector,Gold Contacts XLR Female Audio Connector |
||
製品の説明
Products Description

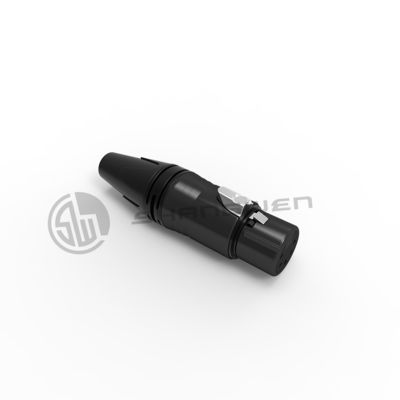

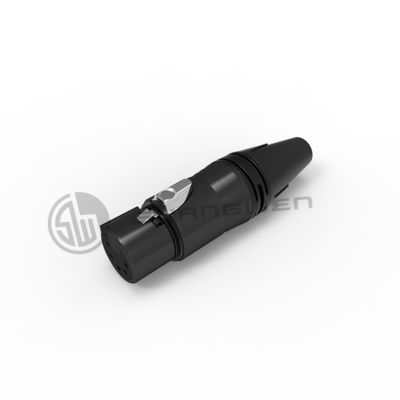

XLR connector-5 pin female plug
Model：SWF5X-1TBN-KN (Black)
☑The contact pin is gold-plated，the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm
1.Product parameters
Connection Type | XLR |
Gender | Female |
2.Electrical parameters
Capacitance between contacts | ≤7pF |
Contact resistance | ≤3mΩ |
Dielectric strength | 1.5kVdc |
Insulation resistance | > 1.5GΩ (initial) |
Rated current per contact | 7.5A |
Rated voltage | <50V |
3.Mechanical parameters
Sign Cable O.D. | 3.5-8mm |
Insertion force | ≤ 40N |
Withdrawal force | ≤ 40N |
Service life | ＞1000 mating cycles |
Wire size | Max. 1.0 mm² |
Wire size | Max. 18 AWG |
Locking device | Latch lock |
4.Material and environmental parameters
Boot | TPU |
Contacts | Cu alloy |
Contact plating | Au |
Insert | Polyamide (PA 66 +30 % GF) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Cr Black |
Strain relief | Polyacetal (POM) |
Flame-retardant grade | UL 94 HB |
Protection class | IP40 |
Temperature range | -20℃to +80℃ |
5.Size reference (unit /mm)

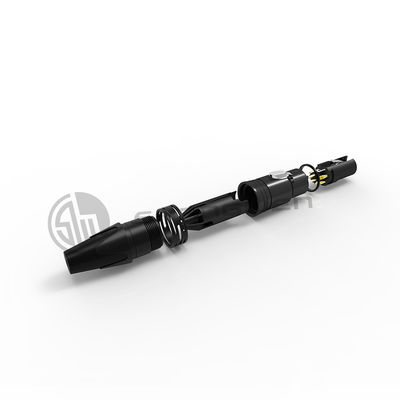

6.Assembly reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
